Pressure Gauges
Description

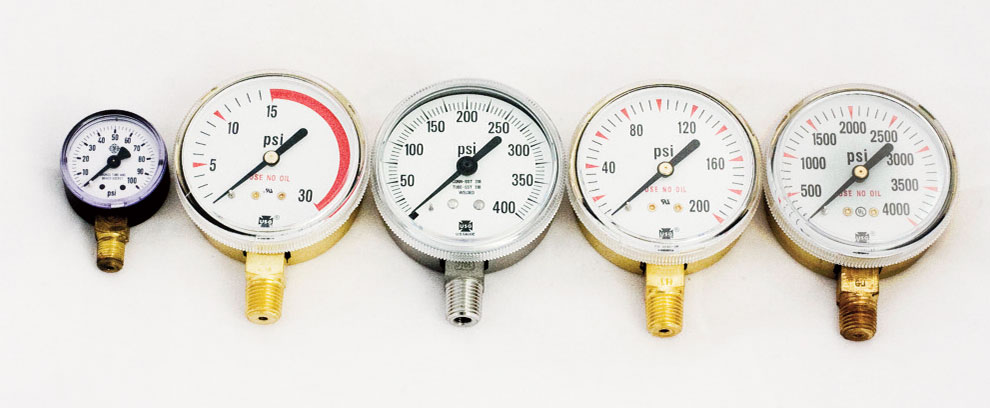

The selection of brass, stainless steel, and monel® gauges presented here represent those used on pressure regulators offered in this catalog. They can be used as repair parts or for installation in other systems.
Features
- 1/4" NPT lower male connection.
- Cleaned for oxygen service - brass and stainless steel only.
How To Order
BRASS WITH BRASS CASE - 2 1/2" DIA.
| Model | Pressure Range - psig |
|---|
| 9131-4PM-0015RL |
0-30 (15RL) |
| 9131-4PM-0030 |
0-30 |
| 9131-4PM-0060 |
0-60 |
| 9131-4PM-0100 |
0-100 |
| 9131-4PM-0200 |
0-200 |
| 9131-4PM-0400 |
0-400 |
| 9131-4PM-2000 |
0-2000 |
| 9131-4PM-6000 |
0-6000 |
| 9131-4PM-7500 |
0-7500 |
316 STAINLESS STEEL WITH STAINLESS STEEL CASE - 2 1/2" DIA.
| Model | Pressure Range - psig |
|---|
| 9132-4PM-3030 |
0-30 (15RL) |
| 9132-4PM-0030 |
0-30 |
| 9132-4PM-0060 |
0-60 |
| 9132-4PM-0100 |
0-100 |
| 9132-4PM-0200 |
0-200 |
| 9132-4PM-0400 |
0-400 |
| 9132-4PM-1000 |
0-1000 |
| 9132-4PM-2000 |
0-2000 |
| 9132-4PM-3000 |
0-3000 |
| 9132-4PM-6000 |
0-6000 |
| 9132-4PM-10000 |
0-10000 |
MONEL® WITH STAINLESS STEEL CASE - 2 1/2" DIA.
| Model | Pressure Range - psig |
|---|
| 9133-4PM-0100 |
0-100 |
| 9133-4PM-0300 |
0-300 |
| 9133-4PM-1000 |
0-1000 |
| 9133-4PM-3000 |
0-3000 |
Other sizes and ranges available.
Gauges With
Face Seal Fittings
Description
On some high purity regulators the gauges are connected to the regulator body by using face seal fittings rather than NPT threads.
Features
- 1/4" female face seal connection.
- Dual scale dial psig/bar.
- Cleaned for oxygen service.
HOW TO ORDER
| Model | Pressure Range |
|---|
| 9122-4VF-3030 |
30" vac. - 0-30 psig (-1.0 - 2 bar) |
| 9122-4VF-3060 |
30" vac. - 0-60 psig (-1.0 - 4 bar) |
| 9122-4VF-3100 |
30" vac. - 0-100 psig (-1.0 - 7 bar) |
| 9122-4VF-0200 |
0-200 psig (0-14 bar) |
| 9122-4VF-0400 |
0-400 psig (0-28 bar) |
| 9122-4VF-1000 |
0-1000 psig (0-70 bar) |
| 9122-4VF-4000 |
0-4000 psig (0-280 bar) |
