Point Of Use Panels
Multiple Source Panels
Series 223
Description
Point of use panels provide a convenient organized method to deliver gas to your laboratory instruments or systems whether from a single source or multiple sources while providing individual pressure control for each application.
Features
- High purity brass or stainless steel line regulators.
- Individual inlets and outlets for each regulator.
- Horizontal or vertical configuration.
- HDPE panel.
- Inlet and outlet connections 1/4”stainless steel compression fittings.
How To Order
| 223M-X-PPP | ||
| M | = | 1 for brass |
| 4 for stainless steel | ||
| X | = | H for horizontal configuration |
| V for vertical configuration | ||
| Y | = | number of regulators |
| C | = | center inlet |
| PPP | = | delivery pressure of each regulator on the panel. Show the range code for each regulator in order from top to bottom or left to right. 25 for 0-25 psig 50 for 0-50 psig 100 for 0-100 psig 150 for 0-150 psig |
Example:
2231-H-25-25-50-100 describes a brass four-regulator panel in the horizontal orientation with the first regulator on the left having a 0-25 psig delivery pressure range followed in order by three others: 0-25 psig, 0-50 psig, and 0-100 psig.
four-regulator horizontal panel configuration
single regulator panel

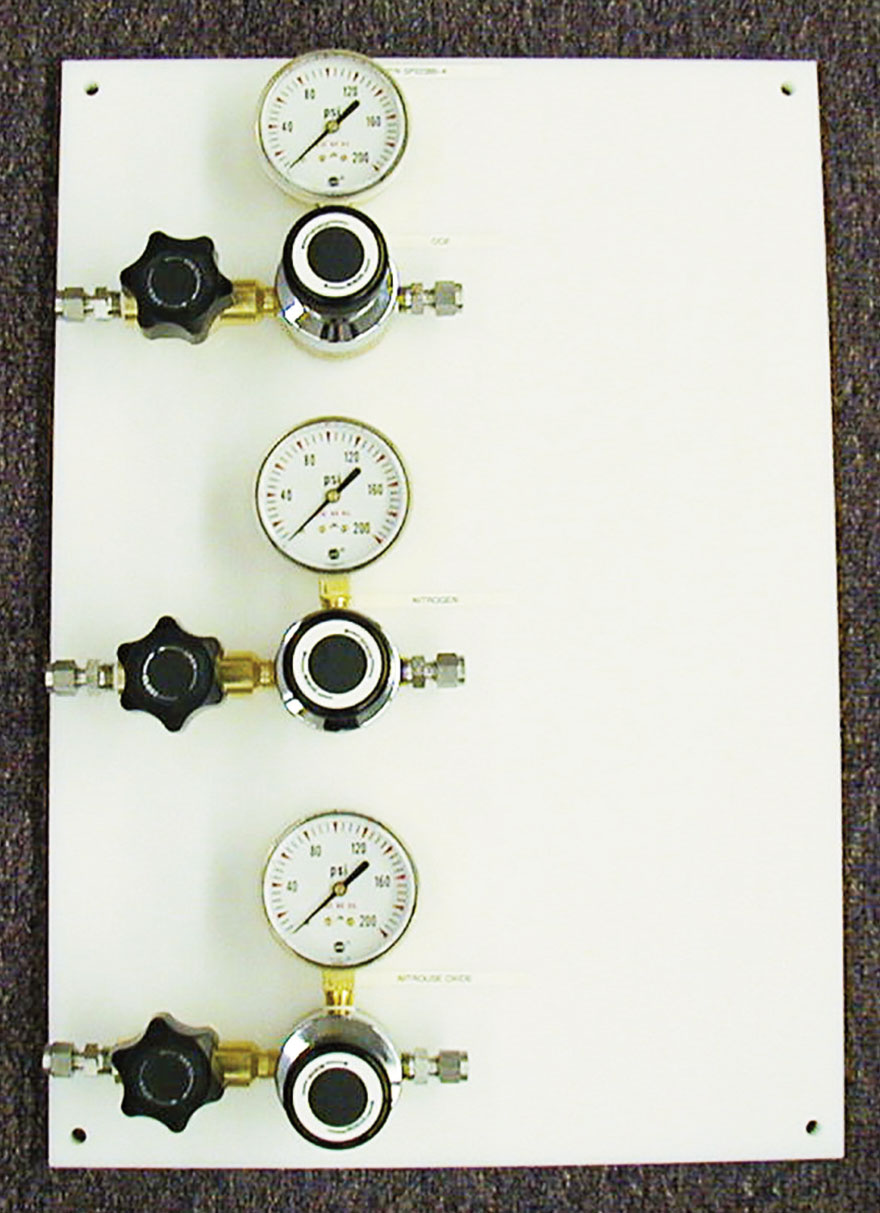

three-regulator vertical panel configuration
